Front and Rear Obstacle Detection and Stop
Recognition & Following
Forward Obstacle Avoidance
Autonomous Navigation
Application Scenarios
-
Education & Research

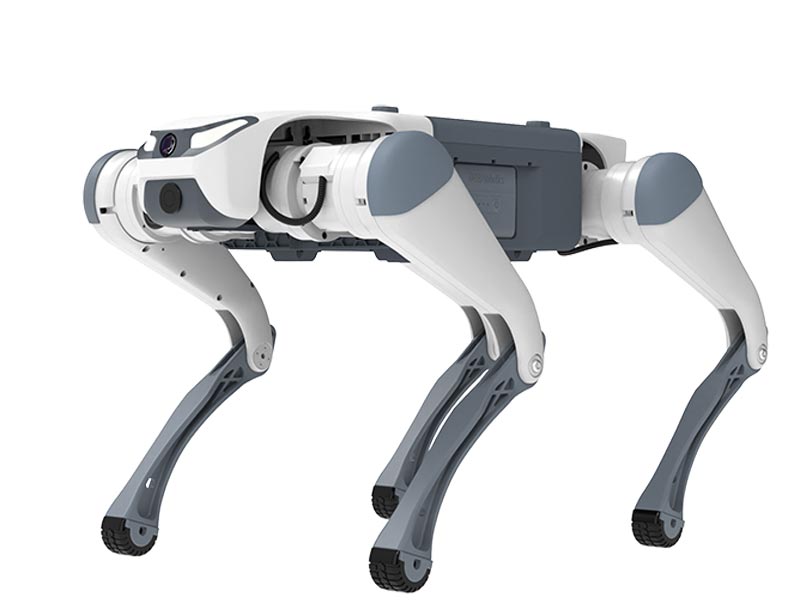

A Lightweight, High-Performance Quadruped Research and Education Platform with Comprehensive Hardware and Open Interfaces, Supporting a Wide Range of Teaching Experiments and Research Validation in Legged Robotics
-
Entertainment & Interaction
Designed for performance and interaction across entertainment stages, tourist attractions and public events, bringing advanced Robotics to audiences of all ages
Detailed Specifications
For more details on interfaces, configurations and delivery, please download the Chinese-language product datasheet or contact us
Trial Version
Discovery Edition
Pro Edition
Laser Edition
Overall Specifications
-
Standing dimensions
approx.610mm×370mm×406mm
-
Weight (with battery)
approx. 12 kg
-
Continuous payload
5 kg
-
Unloaded runtime
approx. 1.5~2h
-
Loaded Runtime
/
-
Charging time
approx. 1h
Motion specifications
-
Max tested speed[1]
/
-
Max operating speed
2.5m/s
-
Max stair height
15cm
-
Max platform height
/
-
Max slope angle
40°
Hardware configuration
-
Computing
octa-core 64-bit industrial processor ×1
-
LiDAR
/
-
Wide-angle camera
×1
-
Speaker
×1
-
Microphone array
/
-
Ultrasonic sensor
×2
-
Depth camera
Environmental specifications
-
Ingress protection rating
/
-
Operating temperature
0°C ~ 40°C
Interface specifications
-
External power interface
/
-
External communication interface
/
Technical specifications
-
Mapping & localization
-
-
Autonomous navigation
-
-
Omnidirectional obstacle avoidance
Front and rear obstacle detection and stop
-
Autonomous charging
-
-
RF video transmission
-
OTA upgrade
-
Autonomous following
Overall specifications
-
Standing dimensions
approx.610mm×370mm×445mm
-
Weight (with battery)
approx. 12.2 kg
-
Continuous payload
4.5 kg
-
Unloaded runtime
approx. 1.5~2h
-
Loaded runtime
/
-
Charging time
approx. 1h
Motion specifications
-
Max tested speed[1]
/
-
Max operating speed
2.5m/s
-
Max stair height
15cm
-
Max platform height
/
-
Max slope angle
40°
Hardware configuration
-
Computing
octa-core 64-bit industrial processor ×1
-
LiDAR
/
-
Wide-angle camera
×1
-
Speaker
×1
-
Microphone array
/
-
Ultrasonic sensor
×2
-
Depth camera
Environmental specifications
-
Ingress protection rating
/
-
Operating temperature
0°C ~ 40°C
Interface specifications
-
External power interface
24 V / 12 V / 5 V
-
External communication interface
Ethernet
Technical specifications
-
Mapping & localization
-
-
Autonomous navigation
-
-
Omnidirectional obstacle avoidance
Front and rear obstacle detection and stop
-
Autonomous charging
-
-
RF video transmission
-
OTA upgrade
-
Autonomous following
Overall specifications
-
Standing dimensions
approx.610mm×370mm×450mm
-
Weight (with battery)
approx. 12.9 kg
-
Continuous payload
4 kg
-
Unloaded runtime
approx. 1.5~2h
-
Loaded runtime
/
-
Charging time
approx. 1h
Motion specifications
-
Max tested speed[1]
/
-
Max operating speed
2.5m/s
-
Max stair height
15cm
-
Max platform height
/
-
Max slope angle
40°
Hardware configuration
-
Computing
octa-core 64-bit industrial processor ×1
NVIDIA Xavier NX ×1 -
LiDAR
/
-
Wide-angle camera
×1
-
Speaker
×1
-
Microphone array
/
-
Ultrasonic sensor
×2
-
Depth camera
×1
Environmental specifications
-
Ingress protection rating
/
-
Operating temperature
0°C ~ 40°C
Interface specifications
-
External power interface
24 V / 12 V / 5 V
-
External communication interface
Ethernet / USB 3.0 / HDMI
Technical specifications
-
Mapping & localization
-
-
Autonomous navigation
-
-
Omnidirectional obstacle avoidance
Front and rear obstacle detection and stop, with forward obstacle avoidance
-
Autonomous charging
-
-
RF video transmission
-
OTA upgrade
-
Autonomous following
Overall specifications
-
Standing dimensions
approx.610mm×370mm×496mm
-
Weight (with battery)
approx. 13.5 kg
-
Continuous payload
2.5 kg
-
Unloaded runtime
approx. 1.5~2h
-
Loaded runtime
/
-
Charging time
approx. 1h
Motion specifications
-
Max tested speed[1]
/
-
Max operating speed
2.5m/s
-
Max stair height
15cm
-
Max platform height
/
-
Max slope angle
40°
Hardware configuration
-
Computing
octa-core 64-bit industrial processor ×1
NVIDIA Xavier NX ×1 -
LiDAR
×1
-
Wide-angle camera
×1
-
Speaker
×1
-
Microphone array
/
-
Ultrasonic sensor
×2
-
Depth camera
×1
Environmental specifications
-
Ingress protection rating
/
-
Operating temperature
0°C ~ 40°C
Interface specifications
-
External power interface
24 V / 12 V / 5 V
-
External communication interface
Ethernet / USB 3.0 / HDMI
Technical specifications
-
Mapping & localization
-
Autonomous navigation
-
Omnidirectional obstacle avoidance
Front and rear obstacle detection and stop, with forward obstacle avoidance
-
Autonomous charging
-
-
RF video transmission
-
OTA upgrade
-
Autonomous following
[1] This data was obtained under extreme laboratory test conditions and is not disclosed for safety reasons.
